BMW Instrument Cluster (IKE) Wiring Description

A2 - IKE, Instrument Cluster
X11175 - Black 26 pin Connector
X11176 - White 18 pin Connector
Fuse 10 - 5 Amps - Terminal R - +12V in Acc, On and Start
Fuse 34 - 5 Amps - Terminal 15 - +12V in On and Start
Fuse 43 - 5 Amps - Terminal 30 - +12V Constant power

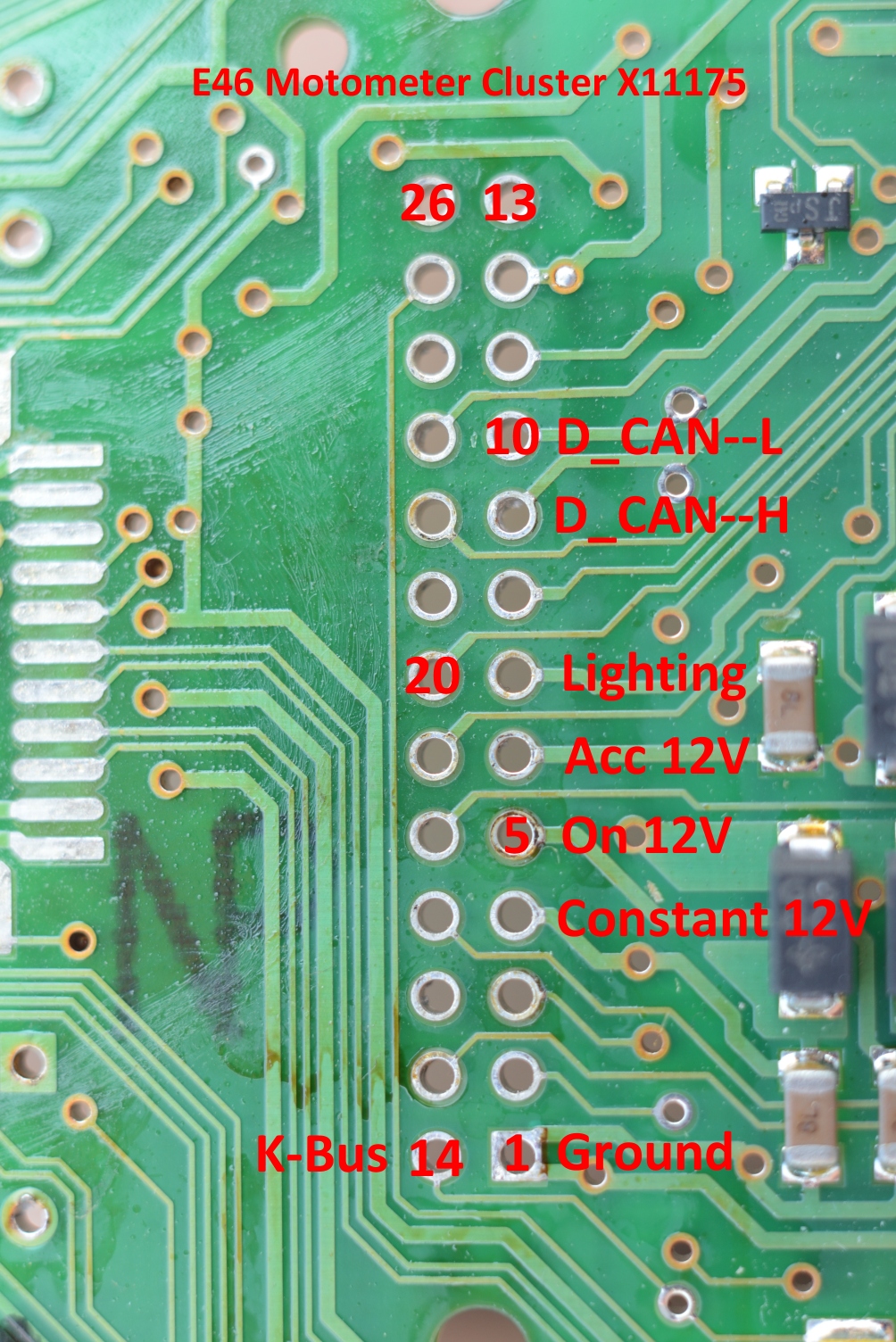

Functions on X11175, 26-pin Dual Row Black Connector
Wire Size/Color
Function
Pin
Pin
Function
Wire Size/Color
0.5 BR/SW Ground
1
14
K--BUS, K-Bus Signal 0.35 WS/RT/GE
0.35 BL S_61--1, Battery Charge Indicator
2
15
TANK2+, Fuel Level Left Tank (M2-6) Sensor 0.5 SW/RT/GE
0.35 SW/GN S_30H, Engine Start Signal Feedback
3
16
TANK2--, Fuel Level Left Tank (M2-4) Ground 0.5 BR/SW/GE
0.5 RT/GE/WS 30<43, Fuse F43 (5 Amp) Term 30
4
17
F_OLN, Oil Level Sensor
Up to 2003/03
, After 2003/03
0.5 WS/GN
0.5 GR/BL
0.5 GN/BL 15<34, Fuse F34 (5 Amp) Term 15
5
18
Signal, Service Interval Indicator Reset 0.5 SW/RT

0.5 VI/GE

R<10, Fuse F10 (5 Amp) Term R

6
19
F_DFAHL, Wheel Speed, Rear Left
ASC (A52-12) or DSC (A65-4)
0.35 GE/GN
0.35 GR/RT 58G, Lighting (MY02 and earlier only)
7
20
BRFN, Brake Fluid Level Sensor 0.35 BR/GN/GE
0.35 SW/WS TAA, Speedometer Signal Output
8
21
AWS, Airbag Warning LED (A12-7) 0.35 BR/VI

0.5 GE/RT

D_CAN--H, CAN Bus High

9

22

ABS Warning Light
ABSSL, DSC (A65-17)
WLAS, ASC (A52-16)

0.5 GR/SW/GE

0.5 GE/BR D_CAN--L, CAN Bus Low
10
23
FSB, Parking Brake Switch 0.5 BL/BR/GE
0.5 SW/RT/WS TANK1+, Fuel Level Right Tank (B6-1) Sensor
11
24
BBV+, Signal, Brake Wear Sensor 0.35 GE
0.5 BR/SW/WS TANK1--, Fuel Level Right Tank (B6-2) Ground
12
25
D_TXD1, Diag Signal TXD 0.35 WS/VI
0.35 BR/GN S_OLD, Oil Pressure Switch (A6000-11)
13
26
KFN, Coolant Level Sensor (S63-2) 0.35 BR/WS

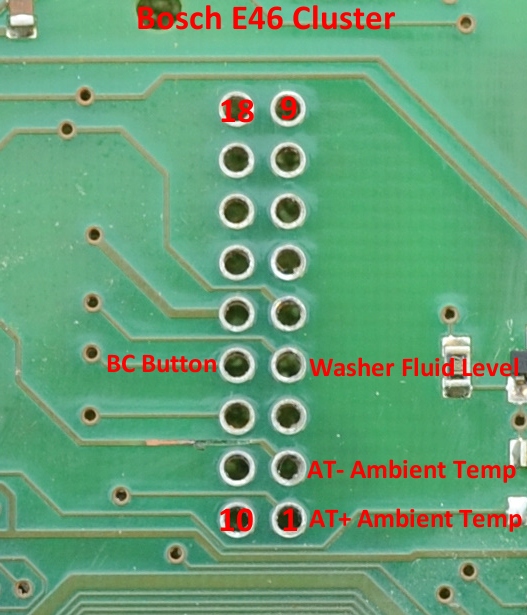

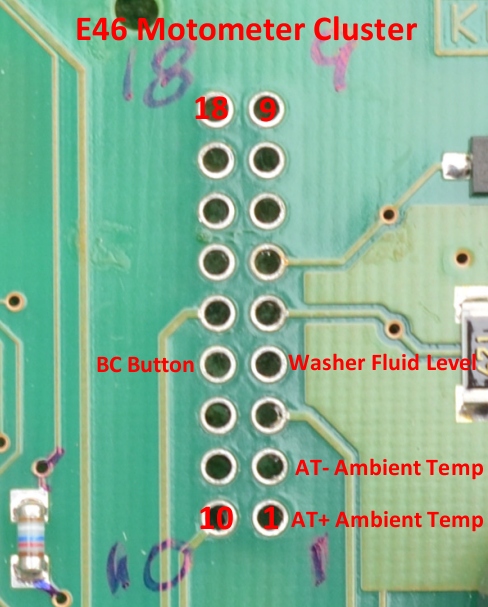

Functions on X11176, 18-pin Dual Row White Connector
Wire Size/Color
Function
Pin
Pin
Function
Wire Size/Color
0.5 BL/RT AT+, Outside Temperature (B21-2) Signal
1
10
N/C
0.5 BL/BR AT--, Outside Temperature (B21-1) Ground
2
11
N/C
N/C
3
12
LVK, Signal, Driver's Seat Belt (Convertible only) 0.35 BL/SW/GE
0.35 BR/GN WWN, Signal, Washer Fluid Level
4
13
LSS, BC button on turn signal stalk (S7-1) 0.35 GE/RT
0.35 BL/GE S_FGRL, Signal, Cruise Control Active (M43 only)
5
14
T3, Signal, Gong (H10-2) 0.35 SW/RT
0.5 WS/BL AWL, Signal,airbag warning, rollover sensor (Convertible only N24-12)
6
15
N/C
0.35 BL/GE S_RS+, Reverse (Manual Transmission Only)
7
16
N/C
N/C
8
17
N/C
N/C
9
18
N/C

Color Code
Color
SW
Black
BR
Brown
RT
Red
GE
Yellow
GN
Green
BL
Blue
VI
Violet
GR
Gray
WS
White

Wire Size (mm2) AWG equivalent
0.35 20
0.50 18
0.75 16-17
1.0 15-16
2.5 11-12

62.11-6 985 675 -> 323ci, 325ci, 328ci - Coupe and Convertible - MPH - Not for automatic transmission ($663.65 at ECS Tuning)
62.10-6 940 901 -> 62.11-6 957 002 -> 62.11-6 985 676 used on 323ci, 325ci, 328ci - Coupe and Convertible - MPH - Automatic and SMG transmission ($663.65 at ECS Tuning)
62.11-6 931 252 -> 62.11-6 925 395 -> 62.11-6 985 652 used on 323i, 325i/xi, 328i - Sedan and Touring - MPH - Automatic and SMG transmission ($663.65 at ECS Tuning)

Back to BMWGM5 Home Page

BMW TIS 62 01 00 (527)
Symptom: The odometer jumps to a lower value.
this fault can occur in yhe event of an undervoltage, e.g. if the battery is discharged.
Cause: Software error in the instrument cluster with a software version less than 20.0
All E46 from start of production up to May 2000.
Solution: Replace cluster and program to car. Mileage will be taken from LSZ.

Fuel level sensor left tank: empty about 70 Ohms, full about 310 Ohms

Fuel level sensor right tank: empty about 70 Ohms, full about 395 Ohms

Ambient temperature sensor is nominally 4.7K at 77F (25C). At 59F (15C) it's 7.33K and at 95F (35C) it's 3.07K.
