Updated September 20, 2025
Below is a BMW General Module 5 (aka ZKE5 and GM5)
I have gone through the wiring diagrams and compiled this list
of connections to the module. Since this module is used in the 3-series sedan,
coupe, convertible and wagon as well as the Z4 and X3 there are some differences
between the cars which are not listed, but, this list is generally correct.
For the most accurate information go to the BMW WDS and look up your specific
car.
|
Pin
|
Function on Connector X254 |
Wire Size/Color
|
|
1
|
SFBHZ2 - Window Switch, Rear Right, Close (S42-1) |
0.5 WS/GE
|
|
2
|
SFFHZ - Window Switch, Driver, Rear Left, Close (S126-9) |
0.5 BL/GN
|
|
3
|
SFBHZ - Window Switch, Passenger, Rear Right, Close (S127-4) |
0.5 BL/GE
|
|
4
|
SFFHZ2 - Window Switch, Rear Left, Close (S41-1) |
0.5 WS/GE
|
|
5
|
STDWA - Signal, Park Angle/Tilt Sensor, In (B28, X1222-4) |
0.5 SW/RT
|
|
6
|
NG - Signal, Park Angle/Tilt Sensor, Out (B28, X1222-1) |
0.5 SW/BL
|
|
7
|
Signal, Hood Switch (S19-2) |
0.5 VI/GN
|
|
8
|
SIRENE - Signal, Anti-Theft Horn, Out (H1, X372-4) |
0.75 SW/BL
|
|
9
|
To A36, rear washer and wiper module on Wagons (X13268-5) |
0.35 BL/GE
|
|
10
|
ERHK - Input Sedan & Coupe - Trunk lock cylinder |
0.35 BR/BL
|
|
11
|
Left Windscreen Washer Jet Heater from 2004-03 |
0.5 GN/GE
|
|
12
|
EKSBH - Window Anti-Trap Strip, Right Rear |
0.35 BR/RT
|
|
13
|
Not Used |
----
|
|
14
|
SFFHA - Window Switch, Driver, Rear Left, Open (S126-6) |
0.5 SW/GE
|
|
15
|
SFBHA - Window Switch, Passenger, Rear Right, Open (S127-5) |
0.5 SW/RT
|
|
16
|
SFFHA2 - Window Switch, Rear Left, Open (S41-4) |
0.5 WS/GN
|
|
17
|
SFBHA2 - Window Switch, Rear Right, Open (S42-4) |
0.5 WS/GN
|
|
18
|
Not Used |
----
|
|
19
|
INRS2 - Signal, Interior Protection II (A123, X1644-3) Convertible Only |
0.5 SW/GE
|
|
20
|
Tire Pressure Control Unit |
0.35 VI/WS
|
|
21
|
KSIS - Driver's Window Disable Switch (S126-8) |
0.5 GN/BL
|
|
22
|
VA2 - Cig Lighter light & Gear shift light (2002/09 on) |
0.75 RT/GN
|
|
23
|
Rear View Mirror LED, Alarm Indicator |
0.5 GR/SW/GE
|
|
24
|
INRS - Signal, Interior Protection Unit I (A121, X1582-3) |
0.5 SW/GE
|
|
25
|
Common with pin X254-11 Right Windscreen Washer Jet Heater |
0.5 GN/GE
|
|
26
|
EKSFH - Window Anti-Trap Strip, Left Rear |
0.35 BR/GE
|
|
Pin
|
Function on Connector X253 |
Wire Size/Color
|
|
1
|
SW1 - Windshield Wiper Switch 1 (S5-7) |
0.35 SW/BL
|
|
2
|
VRBT - Lock Front Passenger Door |
0.5 BL/RT
|
|
3
|
SW2 - Windshield Wiper Switch 2 (S5-1) |
0.35 SW/WS
|
|
4
|
SFBA - Window Switch, Passenger, Front Right, Open (S127-3) |
0.35 GR/BL
|
|
5
|
SFFA - Window Switch, Driver's, Front Left, Open (S126-1) |
0.35 GR/SW
|
|
6
|
TOEHKI - Trunk Release, Button, Inside (S204-6) |
0.35 GR/BR
|
|
7
|
TZV - Central Lock Button (S18-5) |
0.35 GE/RT
|
|
8
|
SIB - Interior Light Switch, Continuous Operation (E34-7) |
0.35 BR/GE
|
|
9
|
K-Bus |
0.35 WS/RT/G
|
|
10
|
Ground (X10012) |
0.5 BR/SW
|
|
11
|
WI1 - Wiper Relay Control (Relay K11-1) |
0.35 BR/BL
|
|
12
|
SRA - Headlight Washer Pump Relay Control (K6-4) |
0.75 BL/SW
|
|
13
|
MVRFT - Driver's Door Lock Motor, Lock |
0.75 WS
|
|
14
|
MZS - Right Rear Door Lock Motor, Double Locking (Sedan/Wagon) MZS - Glovebox Lock Motor (Convertible M107, X13263-3) |
0.75 SW
0.5 SW |
|
15
|
MZS - Left Rear Door Lock Motor, Double Locking [Sedan/Wagon] |
0.75 SW
|
|
16
|
MZS - Passenger Door Lock Motor, Double Locking |
0.75 SW
|
|
17
|
MERHK - Trunk Lid Release Motor (M17, X311-4) |
0.5 GR/GN
|
|
18
|
IB - Footwell Light |
0.75 RT/BL
|
|
19
|
SWA - Windshield Wiper Switch, Spray (S5-4) |
0.35 BR/VI
|
|
20
|

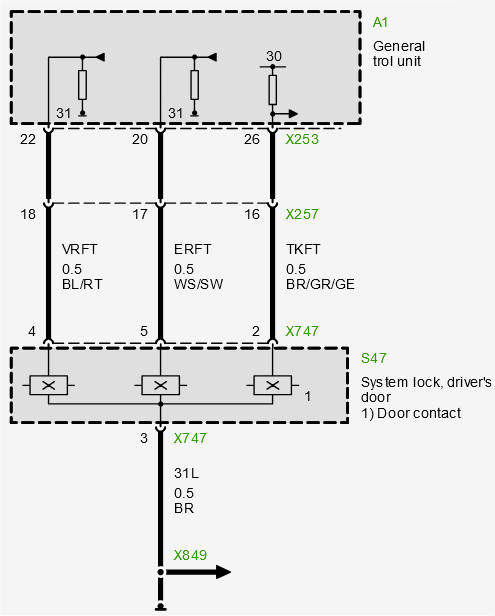

ERFT - Unlock, Driver's Door, Key Position (S47, X747-5) |
0.5 WS/SW
|
|
21
|
ERBT - Unlock Front Passenger Door (or Vert-top lid lock driver's side) |
0.5 WS/SW
|
|
22
|
VRFT - Lock, Driver's Door, Key Position (S47, X747-4) |
0.5 BL/RT
|
|
23
|
TKBH - Right Rear Door Ajar [Sedan/Wagon] VKPOSER - Vert-top lid motor unlocked [Convertible] |
0.35 BR/SW
|
|
24
|
TKFH - Left Rear Door Ajar [Sedan/Wagon] Vert-top lid lock passenger side [Convertible] |
0.35 BR/GR
|
|
25
|

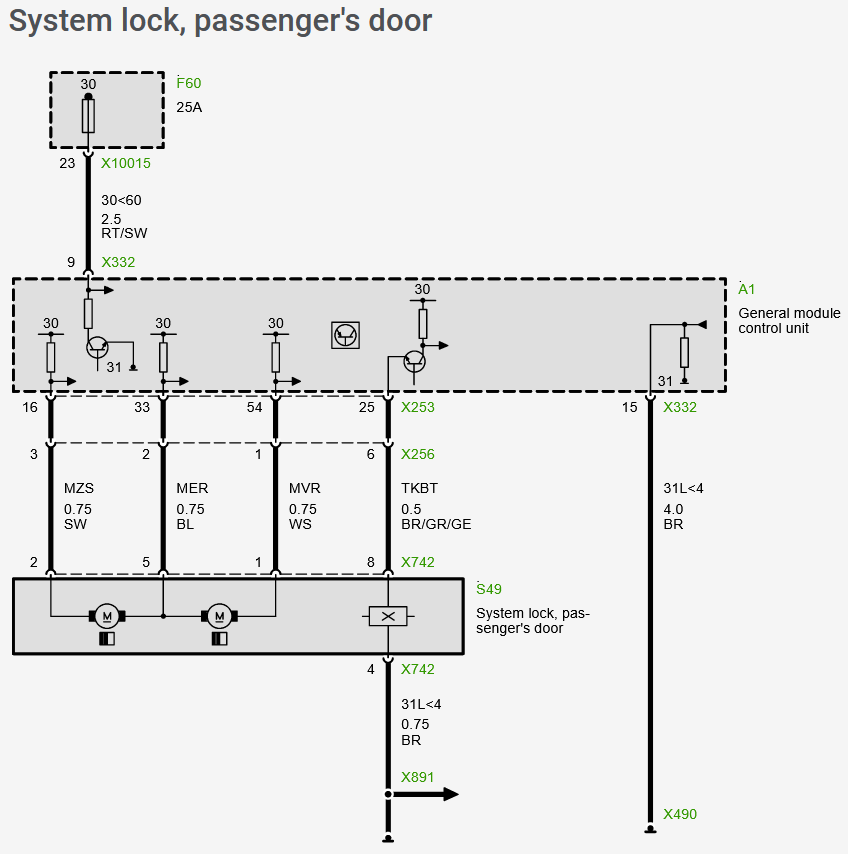

TKBT - Front Passenger Door Ajar (S49, X742-2) |
0.5 BR/GR/GE
|
|
26
|
TKFT - Driver's Door Ajar (S47, X747-2) |
0.5 BR/GR/GE
|
|
27
|
Switched +12V (Accessory/On/Start) |
0.5 VI/GE
|
|
28
|
EKSFT - Front Left Window Anti Trap Strip |
0.35 BR/RT
|
|
29
|
EKSBT - Window Anti Trap Strip, Front Right |
0.35 BR/BL
|
|
30
|
WI2 - Wiper Speed 2 Relay Control (K11-3) |
0.35 BR/BL
|
|
31
|
RERHS - Drive to relay for rear window release (Wagon K90, X1250-4) RERHS - Drive to K18363 for convertible top cover [Convertible] |
0.5 WS/BL
|
|
32
|
MZS - Driver's Door Lock Motor, Double Locking |
0.75 SW
|
|
33
|
MER - Front Passenger Door Lock Motor, Common, Unlock |
0.75 BL
|
|
34
|
MER - Left Rear Door Lock Motor, Common, Unlock [Sedan/Wagon] |
0.75 BL
|
|
35
|
MER - Fuel Filler Lock Motor, Unlock |
0.75 BL
|
|
36
|
MER - Right Rear Door Lock Motor, Unlock (Sedan/Wagon) MER - Glovebox Lock Motor (Convertible M107, X13263-4) |
0.75 BL
0.5 BL |
|
37
|
VRHK - Input, Lift gate Lock Switch| (Sedan/Wagon/Coupe S167, X1191-2) Switch, glovebox central locking (Convertible I01062 X13263-2) |
0.35 BR/VI
|
|
38
|
Multiple Restraint System Control Unit (Signal Crash Sensor) |
0.35 GR/BL
|
|
39
|
E52-Z8 SRA_E Windshield Washer Switch (X295-9) |
0.5 SW/BL
|
|
40
|
SFBZ - Window Switch, Passenger, Front Right, Close (S127-2) |
0.35 GR/GE
|
|
41
|
SFFZ - Window Switch, Driver's, Front Left, Close (S126-4) |
0.35 GR/BR
|
|
42
|
HKK - Trunk/Tailgate Contact (M17, X311-2) |
0.35 GR/BR
|
|
43
|
TOEVK - Vert-Top Open Mechanical top only (A169 X1869-3) TOEHS - Switch, Wagon Rear Window Release [Wagon] |
0.35 GR/GE
|
|
44
|
TOEHK - Switch, open tailgate/trunk (E43, X710-1) |
0.35 GR/GE
|
|
45
|
RSK - Signal, Wiper Reset Contact (M3) |
0.35 BR/GN
|
|
46
|
SWINT - Windshield Wiper Switch Intermittant Variable Resistor (S5-9) |
0.35 SW/GN
|
|
47
|
Constant +12V for general module electronics |
0.5 RT/VI
|
|
48
|

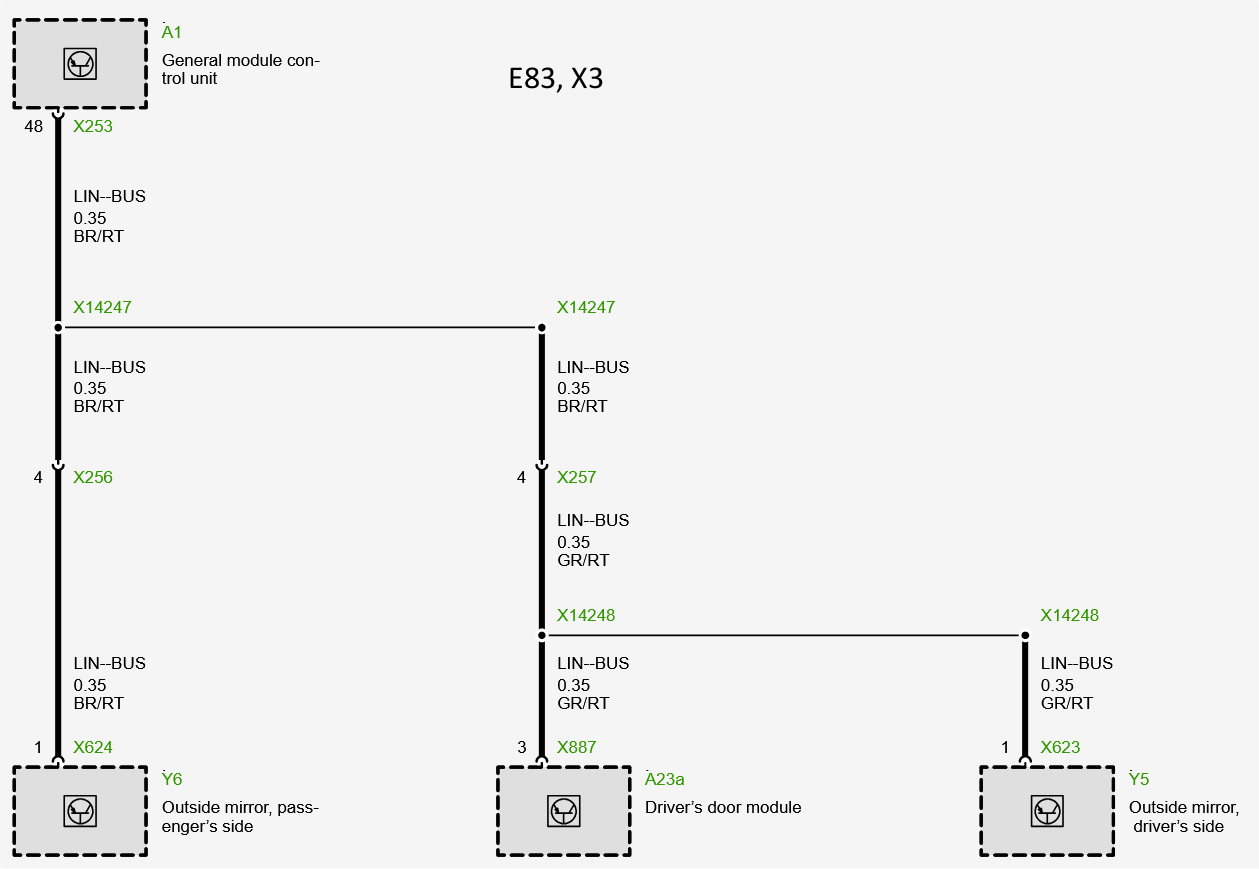

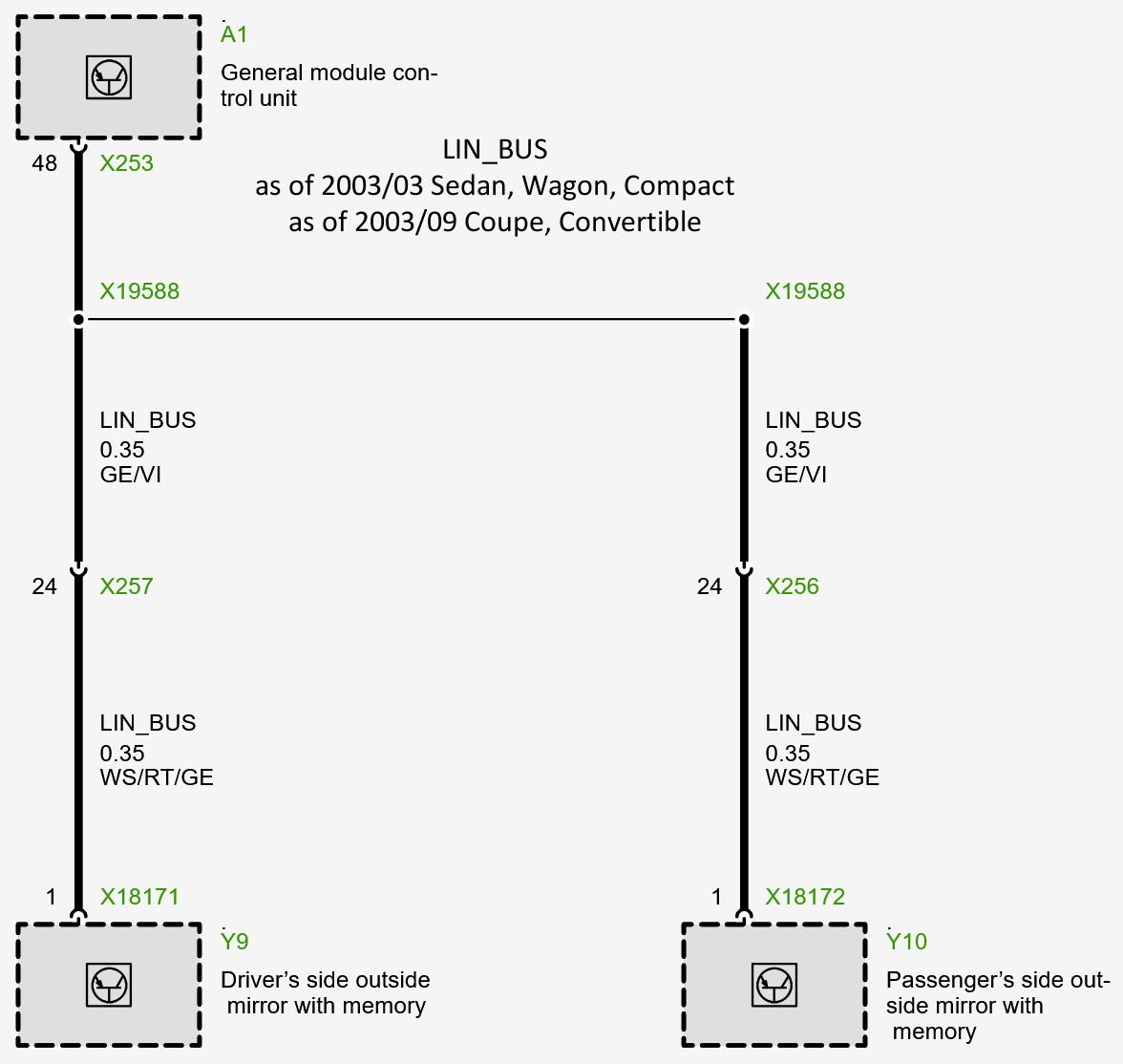

E46 LIN-BUS (2003 on) E83 LIN-BUS |
0.35 GE/VI
|
|
49
|
FZV - Signal from FZV Antenna Amplifier remote key fob (N8-3) |
0.35 BL/RT
|
|
50
|
MZS - Fuel Filler Lock Motor, Lock |
0.75 WS
|
|
51
|
MER - Driver's Door Lock Motor Common, Unlock |
0.75 BL
|
|
52
|
MVR - Right Rear Door Lock Motor, Lock [Sedan/Wagon] |
0.75 SW
|
|
53
|
MVR - Left Rear Door Lock Motor, Lock [Sedan/Wagon] |
0.75 WS
|
|
54
|
MVR - Passenger Door Lock Motor, Lock |
0.75 WS
|
![VKPOSER - Vert-top lid motor unlocked [Convertible]](Images/E46_RERHS_VKPOSER.gif){kind=link}
|
Pin
|
Function on Connector X332 |
Wire Size/Color
|
|
1
|
Constant +12 for trunk/rear release and lights |
2.5 RT/GR
|
|
2
|
WP - Windshield Washer Pump, Wiring Diagram |
1.0 SW
|
|
3
|
VA - Interior/Trunk/Glove Box Light |
1.5 RT/GE
|
|
4
|
MFFHZ - Window Motor, Rear Left, Close (M20-2) E52 Z8; MZS - Center Console Tray Lock Motor |
2.5 BL/GN
0.75 SW |
|
5
|
MFBHZ - Window Motor, Rear Right, Close (M22-2) |
2.5 BL/RT
|
|
6
|
MFBA - Window Motor, Front Right, Open (M23-2) |
2.5 BL/VI
|
|
7
|
MFFA - Window Motor, Front Left, Open (M21-2) |
2.5 BL/GR
|
|
8
|
Constant +12V for Front Windows |
4.0 RT/GN
|
|
9
|
Constant +12V for Door Locks |
2.5 RT/SW
|
|
10
|
Constant +12V for Rear Windows |
2.5 RT/GN
|
|
11
|
MFFHA - Window Motor, Rear Left, Open (M20-1) E52 Z8; MER - Center Console Tray Lock Motor |
2.5 SW/GE
0.75 BL |
|
12
|
MFBHA - Window Motor, Rear Right, Open (M22-1) |
2.5 WS/GE
|
|
13
|
MFBZ - Window Motor, Front Right, Close (M23-1) |
2.5 SW/VI
|
|
14
|
MFFZ - Window Motor, Front Left, Close (M21-1) |
2.5 SW/GN
|
|
15
|

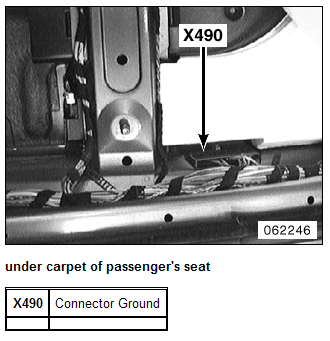

Ground (X490) |
4.0 BR
|
| Connector |
E46 3-series
|
E83 X3
|
E85/86 Z4
|
E52 Z8
|
|
X253-27 |
Fuse 9-5A
|
Fuse 9-5A
|
Fuse 12-5A
|
Fuse 31-7.5A
|
Switched power (Acc, On, Start) |
X253-47 |
Fuse 49-5A
|
Fuse 49-5A
|
Fuse 10-5A
|
Fuse 37-5A
|
Power, general module electronics |
X332-1 |
Fuse 52-30A
|
Fuse 52-30A
|
Fuse 26-30A
|
Fuse 46-30A
|
Power, trunk/rear lid release, interior/glove box/trunk lights |
X332-8 |
Fuse 48-30A
|
Fuse 48-30A
|
Fuse 46-30A
|
Fuse 39-30A
|
Power, front windows |
X332-9 |
Fuse 60-25A
|
Fuse 60-25A
|
Fuse 11-25A
|
Fuse 38-25A
|
Power, door lock |
X332-10 |
Fuse 71-30A/10A
|
Fuse 71-30A
|
N/A
|
Fuse 36-7.5A
|
Power, rear windows |
Fuse card: E46 3-series and X3
Fuse 9 - 5 Amps - brake light, light module, on board computer, speed control (Powered in Accessory, On and Start)
|
Color Code
|
Color
|
|
SW
|
Black
|
|
BR
|
Brown
|
|
RT
|
Red
|
|
GE
|
Yellow
|
|
GN
|
Green
|
|
BL
|
Blue
|
|
VI
|
Violet
|
|
GR
|
Gray
|
|
WS
|
White
|
|
Wire Size (mm^2)
|
AWG equivalent
|
|
0.35
|
22
|
|
0.50
|
20
|
|
0.75
|
19
|
|
1.0
|
18
|
|
1.5
|
16
|
|
2.5
|
14
|
|
4.0
|
12
|
|
KL 0
|
Ignition off
|
|
KL R
|
Ignition Acc-ON-Start
|
|
KL 15
|
Ignition On-Start
|
|
KL 30
|
Constant 12V
|
