BMW General Module 5 Part Numbers
Last updated January 31, 2023
General Module 5 or GM5's are used in a variety of cars including the E46 3-series, the E85 Z4 , the E83 X3 and the E52, Z8. In general they all use the GM5, but, there are lots of different part numbers. I've personally repaired over 2400 GM5 modules from over 30 different part numbers and they are mostly the same aside from board re-layout to move all components to one side of the board to make it cheaer to assembly. The major difference is some GM5's only have 4 relays instead of the usual 6. The two missing relays are for the rear windows. Also GM5 modules for the Z4 have a different case (insides are pretty much the same though). The Z4 case is made with mounting flanges so that it can be screwed down to the car. For the 3-series there are no flanges because the module slides into a module rack. I do not have a break down of which P/N's have all 6 relays and which have 4. Sorry, I forgot to keep track. If you get a new module from the dealer you won't get the same P/N as a replacement. BMW has one part number (ok, two. One with mounting flange for the Z4 and one without for the 3-series). The latest P/N for the 3-series is 61353454607. This unit has all 6 relays inside and can be used as a replacement for any 3-series, 4dr, coupe, wagon or convertible. It is uncoded and therefore needs to be taken to the dealer to be coded for your car. Cost is about $750-1200 for the dealer to replace and code the new unit. In most cases the module doesn't need to be replaced, but, just repaired. Consider taking advantage of my repair service -> GM5 Repair
I've seen a variety of different part numbers including,
61356932371, 61356963338,
61356963026, 61356944840
and 61356944842 to name a few. I found
the following info on realoem.com GM5 Part
Numbers for E46, 3-Series
61356944840 -- GM5 Star12
LIN HIGH, Discontinued Up to 10/2004 (Relays 6x EP2F-B3G1S)
61356963026 -- GM5 Star12
LIN HIGH, Discontinued Up to 01/2006
61356963338 -- GM5 Star12 LIN HIGH Up to 09/2007
61359161931 -- GM5 Star12 LIN HIGH (Relays 6x EP2F-B3G1S) Discontinued Up to ???
61353454607 -- GM5 Star12 LIN HIGH New Uncoded Module ($497.82 at ECS
Tuning or $471.47 GetBMWParts.com)
GM5 Part Numbers for E52, Z8 and Alpina
61356907663 -- GM5-HIGH US
12V, Discontinued
61356924250 -- GM5RD K-BUS
HI US, Discontinued
61356932391 -- GM5RD K-BUS
HI US, Discontinued Up to 03/2003
61356923960 -- GM5RD K-Bus
HIGH 12V, Discontinued Up to 02/2003
61356932369 -- GM5RD K-Bus
HIGH 12V, Discontinued Up to 03/2003
61356932371 -- GM5RD K/LIN-BUS
HIGH, Discontinued Up to 03/2004
61356944840 -- GM5 Star12
LIN HIGH, Discontinued Up to 10/2004 (Relays 6x EP2F-B3G1S)
61356963026 -- GM5 Star12
LIN HIGH, Discontinued Up to 11/2005
61356963338 -- GM5 Star12 LIN HIGH Up to 09/2007
61353454607 -- GM5 Star12 LIN HIGH New Uncoded Module ($497.82 at ECS
Tuning or $471.47 GetBMWParts.com)
GM5 Part Numbers for E52, Alpina
61356932371 -- GM5RD K/LIN-BUS
HIGH, Discontinued 03/2003 - 03/2004
61356944840 -- GM5 Star12
LIN HIGH, Discontinued 03/2003 - 10/2004 (Relays 6x EP2F-B3G1S)
61356963026 -- GM5 Star12
LIN HIGH, Discontinued 03/2003 - 11/2005
61356963338 -- GM5 Star12 LIN HIGH Up to 09/2007
61359161931 -- GM5 Star12 LIN HIGH (Relays 6x EP2F-B3G1S) Discontinued
61353454607 -- GM5 Star12 LIN HIGH New Uncoded Module ($497.82 at ECS
Tuning or $471.47 GetBMWParts.com)
Below is a partial list of recent GM5 modules I've
had in for repair. So far no complaints.
Part No.
61356907660 -- GM V LOW
12V BMW 61.35-6 907 660 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- GM5-HIGH US
12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)

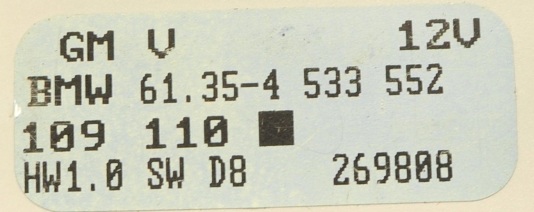

61354533552 - GM V 12V BMW
61.35-4 533 552
61356914367.9 - ZB GM5 LOW 12V BMW 61.35-6 914 367.9 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61358385543.9 -- ZB GM5 LOW 12V BMW 61.35-8 385 543.9 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356932384 -- GM5RD K/LIN
HIGH US BMW 61.35 6 932 384 Delphi (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61354533550 -- 1998 318i 4dr
(Finland & Norway) GM V LOW 12V BMW 61.35-4 533 550
61354533592 -- 1998 323i 4dr
(Australia) ZB GM5 HIGH 12V BMW 61.35-4 533 592 (Relays 4x V23084-C2001-A303
and 2x V23078-C1002-A303)
61354533592 -- 1999 3-series
4dr ZB GM5 HIGH 12V BMW 61.35-4 533 592 SHURLOCK #267740AA
61358385538 -- 1999 318i 4dr
(Australia) GM V 12V BMW 61.35-8 385 538 (Relays 4x V23084-C2001-A303 and 2x
V23078-C1002-A303)
61358385540.9 -- 1999 318i 4dr
(Australia) ZB GM5 HIGH 12V BMW 61.35-8 385 540.9 (Relays 4x V23084-C2001-A303
and 2x V23078-C1002-A303)
61358385541 - 1999 318i 4dr (Norway) GM V LOW 12V BMW 61.35-8 385 541
61358385541 - 1999 320d 4dr (Spain) GM V LOW 12V BMW 61.35-8 385 541
61354533551 -- early 1999 323i/328i 4dr GM V 12V BMW 61.35-4 533 551 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61358385538 -- 1999-2000 323i/328i 4dr GM V 12V BMW 61.35-8 385 538 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61358385538 -- 2000 316i 4dr
GM V 12V BMW 61.35-8 385 538 (U.K.) (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61358385544 -- 2000 323i 4dr/wagon GM5-HIGH US 12V BMW 8 385 544 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)

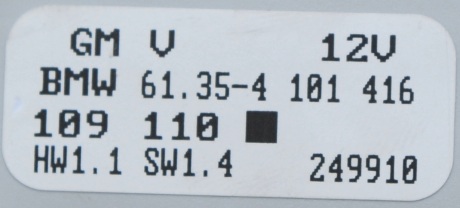

61354101416 -- 2000 323ci/328ci GM V 12V BMW 61.35-4 101 416 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)

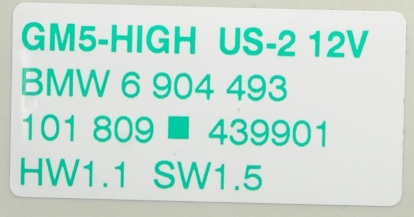

61356904493 -- 2000 323ci GM5-HIGH
US-2 12V BMW 6 904 493 (Canada) (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356904487 -- 2000 328ci GM
V 12V BMW 61.35-6 904 487 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356904493 -- 2000 328ci GM5-HIGH
US-2 12V BMW 6 904 493 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61358385538 -- 2000 328i 4dr
GM V 12V BMW 61.35-8 385 538 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61358385544 -- 2000 328i
4dr GM5-HIGH US 12V BMW 8 385 544 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61358385540.9 -- 2000 328i 4dr
ZB GM5 HIGH 12V BMW 61.35-8 385 540.9 SHURLOCK #516281AA FT1100 (Relays 4x V23084-C2001-A303
and 2x V23078-C1002-A303)
61356907657 -- 2000 330xi Wagon
(Norway) GM V 12V BMW 61.35-6 907 657
61356907657 -- 2000 330ci (U.K.) GM V 12V BMW 61.35-6 907 657
61356907657
-- 200? 330ci (Australia) GM V 12V BMW 61.35-6 907 657
61356907659.9 - ZB GM5 HIGH 12V BMW 61.35-6 907 659.9
61356907663 -- 2000 323i 4dr
(Canada) GM5-HIGH US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- 2001 325ci GM5-HIGH
US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- 2001 325xi 4dr
GM5-HIGH US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- 2001 330ci GM5-HIGH
US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- 2001 330i 4dr
GM5-HIGH US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- 2001 325ci Convert
GM5-HIGH US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- 2001 330ci Convert
GM5-HIGH US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356907663 -- 2001 325i 4dr
GM5-HIGH US 12V BMW 6 907 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356909663 --
GM V 12V BMW 61.35-6 909 663 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303) HW1.1 SWE.2

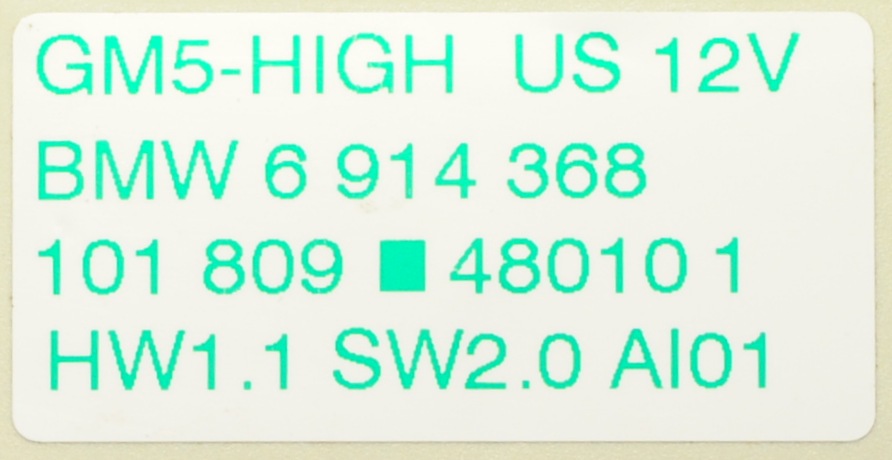

61356914368 -- 2001 325i 4dr
GM5-HIGH-US 12V BMW 6 914 368 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61354114282 -- 2002 320d GM V 12V BMW 4 114 282 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61354114282 -- 2002 325i Wagon GM V 12V BMW 4 114 282 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)

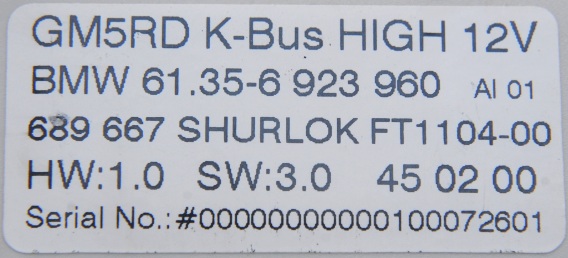

61356923960 -- 2002 320d
GM5RD K-Bus HIGH 12V BMW 61.35-6 923 960 (Relays 4x V23084-C2001-A303 and 2x
V23078-C1002-A303)
61356914362 -- 2002 325ci Coupe Australia
GM V 12V BMW 6 914 362 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)

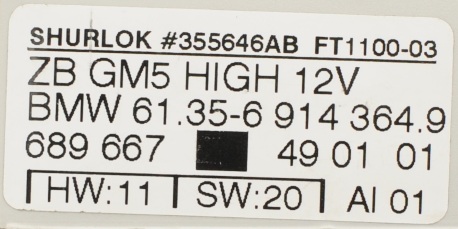

61356914364.9 - 2002 320d ZB
GM5 HIGH 12V BMW 61.35-6 914 364.9 SHURLOCK #355646AB FT1100-03
61356914368 -- 2002 325i 4dr
GM5-HIGH-US 12V BMW 6 914 368 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356914368 -- 2002 325xi Wagon
GM5-HIGH US 12V BMW 6 914 368 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356914368 -- 2002 330i 4dr
GM5-HIGH US 12V BMW 6 914 368 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356914368 -- 2002 330ci Convert
GM5-HIGH US 12V BMW 6 914 368 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356914368 -- 2002 330ci GM5-HIGH
US 12V BMW 6 914 368 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356914368 -- 2002 M3 Coupe
GM5-HIGH US 12V BMW 6 914 368 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)

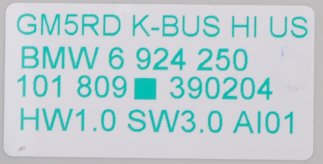

61356924250 -- 2003 M3 GM5RD
K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356923960 -- 2003 320d
GM5RD K-Bus HIGH 12V BMW 61.35-6 923 960 (Relays 4x V23084-C2001-A303 and 2x
V23078-C1002-A303)
61356923960 -- 2003 318i (New Zealand) GM5RD K-Bus HIGH 12V BMW 61.35-6 923 960 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356932368 -- 2003 320d Wagon (Norway) GM5RD K-Bus LOW 12V BMW 61.35-6 932 368 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356923960 -- 2003 325i
4dr GM5RD K-Bus HIGH 12V BMW 61.35-6 923 960 (Relays 4x V23084-C2001-A303 and
2x V23078-C1002-A303)

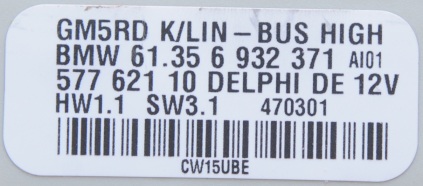

61356932371 -- 2003 325i 4dr
GM5RD K/LIN-Bus HIGH 12V BMW 61.35-6 932 371 Shurlock (this was not the original
GM5 for this car)
61356924250 -- 2003 325i 4dr
GM5RD K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356924250 -- 2003 325i 4dr
(Jamaica) GM5RD K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x
V23078-C1002-A303)
61356924250 -- 2003 325i Wagon
GM5RD K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356924250 -- 2003 325ci
Convert GM5RD K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x
V23078-C1002-A303)
61356924250 -- 2003 330xi
GM5RD K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356924250 -- 2003 325xi
4dr GM5RD K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356924250 -- 2003 325xi
Wagon GM5RD K-BUS HI US BMW 6 924 250 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356932391 -- 2003 325xi
GM5RD K-BUS HI US BMW 6 932 391 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356932391 -- 2003 330ci
GM5RD K-BUS HI US BMW 6 932 391 (Relays 4x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356932384 -- 2003 330i
GM5RD K/LIN HIGH US BMW 61.35 6 932 384 (Relays 4x V23084-C2001-A303 and 2x
V23078-C1002-A303)
61356932369 -- 2004 320i
4dr (Australia) GM5RD K-Bus HIGH 12V BMW 61.35-6 932 369 Shurlock (Relays 4x
V23084-C2001-A303 and 2x V23078-C1002-A303)
61356932369 -- 2004 320i
4dr (Canada) GM5RD K-Bus HIGH 12V BMW 61.35-6 932 369 Shurlock (Relays 4x V23084-C2001-A303
and 2x V23078-C1002-A303)
61356932369 -- 2004 330i
4dr (Canada) GM5RD K-Bus HIGH 12V BMW 61.35-6 932 369 Shurlock (Relays 4x V23084-C2001-A303
and 2x V23078-C1002-A303)
61356932371 -- 2004 325i 4dr
GM5RD K/LIN-Bus HIGH 12V BMW 61.35-6 932 371 Shurlock (Relays 4x V23084-C2001-A303
and 2x V23078-C1002-A303)
61356944840 -- 2004
325i 4dr GM5 Star12 LIN HIGH 61.35 6 944 840 DELPHI (Relays 6x EP2F-B3G1S)
61356932371 -- 2004 330d 4dr
Wagon (U.K.) GM5RD K/LIN-Bus HIGH 12V BMW 61.35-6 932 371 Shurlock (Relays 4x
V23084-C2001-A303 and 2x V23078-C1002-A303)
61356944840 -- 2005
330i 4dr GM5 Star12 LIN HIGH 61.35 6 944 840 DELPHI (Relays 6x EP2F-B3G1S)

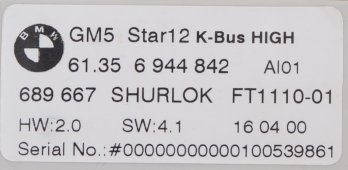

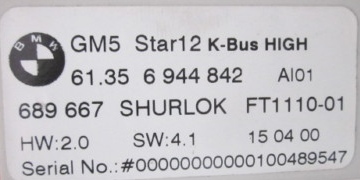

61356944842 -- GM5 Star12 K-Bus HIGH 61.35 6 944 842 SHURLOK (Relays 6x EP2F-B3G1S)
61356944843 - 2004 318d GM5 Star12 K-Bus LOW 61.35 6 944 843 SHURLOK (Relays 4x EP2F-B3G1S)
61356963026 -- 2005 325ci Convert GM5 Star12 LIN HIGH 61.35 6 963 026 DELPHI (Relays 6x EP2F-B3G1S)
61356963342 -- 2005 M3 Convert GM5 Star12 HIGH 61.35 6 963 342 DELPHI MEX 12V (Relays 6x EP2F-B3G1S)
61356963030 -- 2006 M3 Convert GM5STAR12 HIGH 61.35 6 963 030 DELPHI (Relays 6x EP2F-B3G1S)
BMW Z4's (E85, E86)
61356919275 -- 2003 Z4
GM5RD E85, 12V BMW61.35-6919275 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356931707 -- 2004 Z4
GM5RD E85, 12V BMW61.35-6931707 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356939943 -- 2004 Z4
GM5RD E85, 12V BMW61.35-6939943 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356963038 -- 2006 Z4 GM5Star12 LOW 61.35 6 963 038 DELPHI MEX 12V(Relays 4x EP2F-B3G1S)
61356931707 -- GM5RD
E85, 12V, Discontinued, Up to 08/2003 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)
61356939943 -- GM5RD E85, 12V, Discontinued, Up to 03/2004 (Relays 2x V23084-C2001-A303 and 2x V23078-C1002-A303)

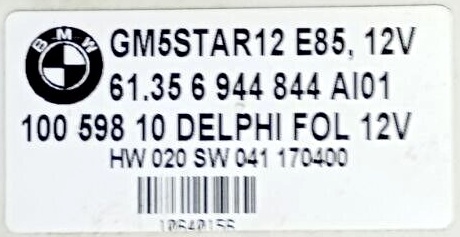

61356944844 Discontinued, Up to 11/2004
61356963038 -- GM5STAR12 LOW 61.35 6 963 038 (Relays 4x EP2F-B3G1S) Discontinued, Up to 01/2006
61356988086 -- Discontinued, Up to 02/2007
61359116445 -- GM5 Star12 LOW - New Uncoded Module ($497.82 at
ECS Tuning or $471.47 at GetBMWParts.com)
BMW X3 (E83) 2004-2010
61356940067 -- 2004 X3 GM5RD K/LIN BUS HIGH BMW 61.35 6 940 067 DELPHI
61356944840 -- GM5 Star12 LIN HIGH
61356963026 -- GM5 Star12 LIN HIGH
61356963338 -- GM5 Star12 LIN HIGH Up to 09/2007
61359161931 -- GM5 Star12 LIN HIGH (Relays 6x EP2F-B3G1S) Discontinued, Up to 09/2007
61353454607 -- GM5 Star12 LIN HIGH New Uncoded Module ($497.82 at ECS
Tuning or $471.47 GetBMWParts.com)
Not sure how up to date it is. I suspect that this module is different depending if the car has a sunroof, convertible, coupe, but, realoem.com doesn't make a distinction. On the web I saw a picture of another GM5 that only had 4 relays to my 6 (this was probably from a coupe or convertible).
