BMW E46 Electrochromatic Mirror for convertible with 315MHz FZV, Home Link and SOS
P/N 51.16-7 115 777
Last updated November 28, 2012

A new replacement mirror is part number is 51.16-4 363 962 and $591.24 MSRP or $489.20 from ECS Tuning
For an Electrochromatic mirror not for a convertible and without Home Link then you want P/N 51169134440, $394.73 at ECS Tuning
If you want just a standard mirror you want P/N 51168189315, 140.98 at ECS Tuning

This mirror is actually a customers mirror that was sent to me for repair of the FZV antenna amplifier because he could not use the key fob remote. It's now fixed and before I put it all back together I thought I'd snap a few pictures. He was very happy to have the function of his key remote back without spending $631.13 for a new mirror plus installation.

This mirror has 315 MHz remote receiver (FZV) for the key fob, auto dimming feature, Home Link garage door opener and SOS button.

On the left is the module for the HomeLink garage door opener board. In the center bottom is the FZV receiver. On the right is the module for the SOS.

This is the picture of the back of the actual auto dimming mirror assembly. It's basically one big LCD display pixel.

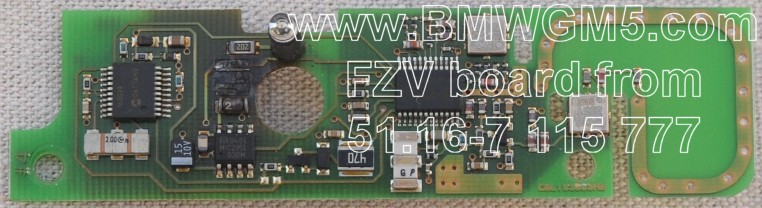

Below is the FZV antenna amplifier which is only in the rear view mirrors used in Convertibles. Normally the FZV amp is in the drivers side C-pillar, but, in the convertible it's in the rear view mirror.

X18246 Function
Wire Color
Internal Connection
1
Reverse signal (manual transmission only)
Gray
H1-5
2
FZV signal out to General Module
Blue
DWA-5
3
Power, Fuse 24, Switched with ignition switch
Red
H1-9
4
Unknown function (+O)
White
H1-3
5
Unknown function (-O)
Black
H1-4
6
Unknown function (-O)
White/Black
H1-1
7
Unknown function (+O)
Green
H1-2
8
Power, Fuse 67, Constant
Red/White
DWA-4
9
DWA LED Signal
Violet
DWA-3
10
Ground
Brown
DWA-2
---
Ground
Black/Red
DWA-1
---
FZV Antenna
Yellow
DWA-6

Rear View Mirrors

51167115777 - Auto dimming, LED, Home Link, SOS, 315 MHz convertible, superceded by 51164363962
51164363962 - Auto dimming, LED, Home Link, SOS, 315 MHz convertible, E46, $482.18

51167148839 - Auto dimming, LED, Home Link, compass, E39, superceded by 51169192335
51169192335 - Auto dimming, LED, Home Link, compass, E38/39/46/53/60/61/63/65/66/70/71/82/83/84/90/91/92, $567.26

51169134431 - Auto dimming, LED, Home Link, compass, E38/39/46/53/60/61/63/65/66/70/71/83/90, superceded by 51169192335
51169192335 - Auto dimming, LED, Home Link, compass, E38/39/46/53/60/61/63/6566/70/71/82/83/84/90/91/92, $567.26

51168254060 - superceded by 51169123513 Auto Dimming, Home Link, 315 MHz for convertibles
51169123513 - Auto dimming, LED, Home Link, 315 MHz for convertible, E46, $524.73

51168257722 - Manual dimming, LED, 315 MHz for convertibles, E46, $184.36

51168236774 - Auto dimming, LED, E39/53/83 superceded by 51169134416
51169134416 - Auto dimming, LED, E39/46/53/60/61/70/83/90/91/92, $354.55

51167892262 - superceded by 51169142225 M3 Oval mirror, Auto Dimming, 315 MHz
51169142225 - Oval mirror, auto dimming, LED, 315 MHz, E46/86, $397.07

51167126522 - Oval mirror, auto dimming, LED, 315 MHz, SOS, E46 M3 Coupe, $462

51169134459 - Auto dimming, LED, superceded by 51169134440, E32/34/38/39/46/53/60/61/70/71/72/82/83/84/90
51169134440 - Auto dimming, LED, E70/72/90/91/92, $397.07

51168189315 - Manual dimming, LED, E39/46, $141.82

51161928939 - Manual dimming, no LED, E32/34/36/39/46, $141.82

51169218046 - Manual dimming, LED, E38/39/46/53/60/61..., $141.82

51167118714 - Auto dimming, LED, Auto toll collection (ETC), E60, $1386.83<- not a typo, actualy $1386.83.

51169218050 - Manual dimming, LED, 315 MHz convertible, E90/91/92/93, $184.36

51167114428 - Manual dimming, LED, (E46vert) $141.82
